Praktikum 2 Cisco - Meringkas Informasi Rute

Bismillah..

Kita lanjut lagi di tutorial kali ini yang membahas tentang router cisco dengan menggunakan routing sederhana dan meringkas informasi rute dari jaringan yang kita tuju.

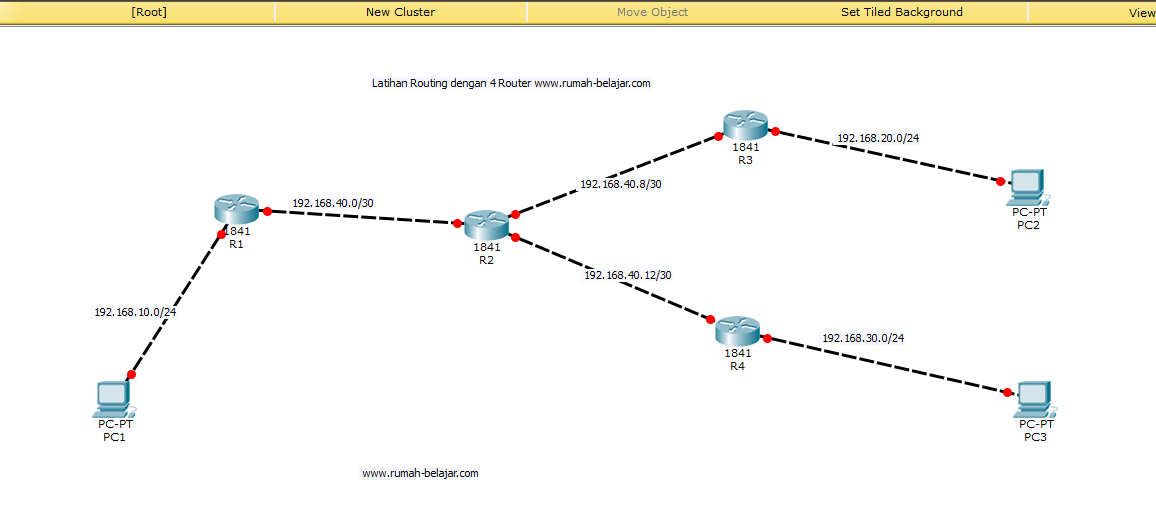

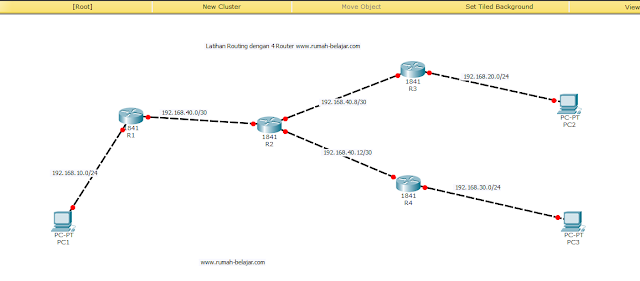

Berikut gambar topologi yang kita buat:

Ip PC1 = 192.168.10.10

IP PC2 = 192.168.20.10

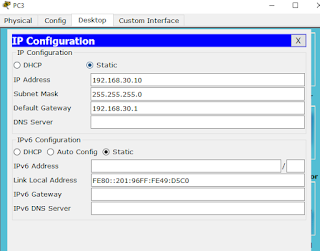

IP PC3 = 192.168.30.10

Konfigurasi router 1 :

Router>en

Router#configure terminal

Enter configuration commands, one per line. End with CNTL/Z.

Router(config)#interface fa0/0

Router(config-if)#ip address 192.168.10.1 255.255.255.0

Router(config-if)#no shutdown

Router(config-if)#exi

Router(config)#interface fa0/1

Router(config-if)#ip address 192.168.40.5 255.255.255.252

Router(config-if)#host

Router(config-if)#exi

Router(config)#interface fa0/1

Router(config-if)#no shutdown

Router(config-if)#

%LINK-5-CHANGED: Interface FastEthernet0/1, changed state to up

Router(config-if)#exi

Router(config)#hostname router-Rumah-belajar.com1

router-Rumah-belajar.com1(config)#

Konfigurasi di Router 2 :

Router>en

Router#configure terminal

Enter configuration commands, one per line. End with CNTL/Z.

Router(config)#hostname routerrumah-belajar.com2

routerrumah-belajar.com2(config)#interface fa0/0

routerrumah-belajar.com2(config-if)#ip add

routerrumah-belajar.com2(config-if)#ip address 192.168.40.6 255.255.255.252

routerrumah-belajar.com2(config-if)#no shu

routerrumah-belajar.com2(config-if)#no shutdown

%LINK-5-CHANGED: Interface FastEthernet0/0, changed state to up

%LINEPROTO-5-UPDOWN: Line protocol on Interface FastEthernet0/0, changed state to up

routerrumah-belajar.com2(config-if)#exi

routerrumah-belajar.com2(config)#

routerrumah-belajar.com2#

routerrumah-belajar.com2#config

routerrumah-belajar.com2#configure ter

Enter configuration commands, one per line. End with CNTL/Z.

routerrumah-belajar.com2(config)#interface fa0/1

routerrumah-belajar.com2(config-if)#ip address 192.168.40.9 255.255.255.252

routerrumah-belajar.com2(config-if)#no shu

routerrumah-belajar.com2(config-if)#no shutdown

routerrumah-belajar.com2(config-if)#

%LINK-5-CHANGED: Interface FastEthernet0/1, changed state to up

routerrumah-belajar.com2(config-if)#exi

routerrumah-belajar.com2(config)#interface ethernet 0/1/0

routerrumah-belajar.com2(config-if)#ip addr

routerrumah-belajar.com2(config-if)#ip address 192.168.40.13 255.255.255.252

routerrumah-belajar.com2(config-if)#no shu

routerrumah-belajar.com2(config-if)#no shutdown

routerrumah-belajar.com2(config-if)#

%LINK-5-CHANGED: Interface Ethernet0/1/0, changed state to up

routerrumah-belajar.com2(config-if)#exi

routerrumah-belajar.com2(config)#exi

routerrumah-belajar.com2#

%SYS-5-CONFIG_I: Configured from console by console

routerrumah-belajar.com2#

Ok..kita lanjut tutorialnya besok ya..
